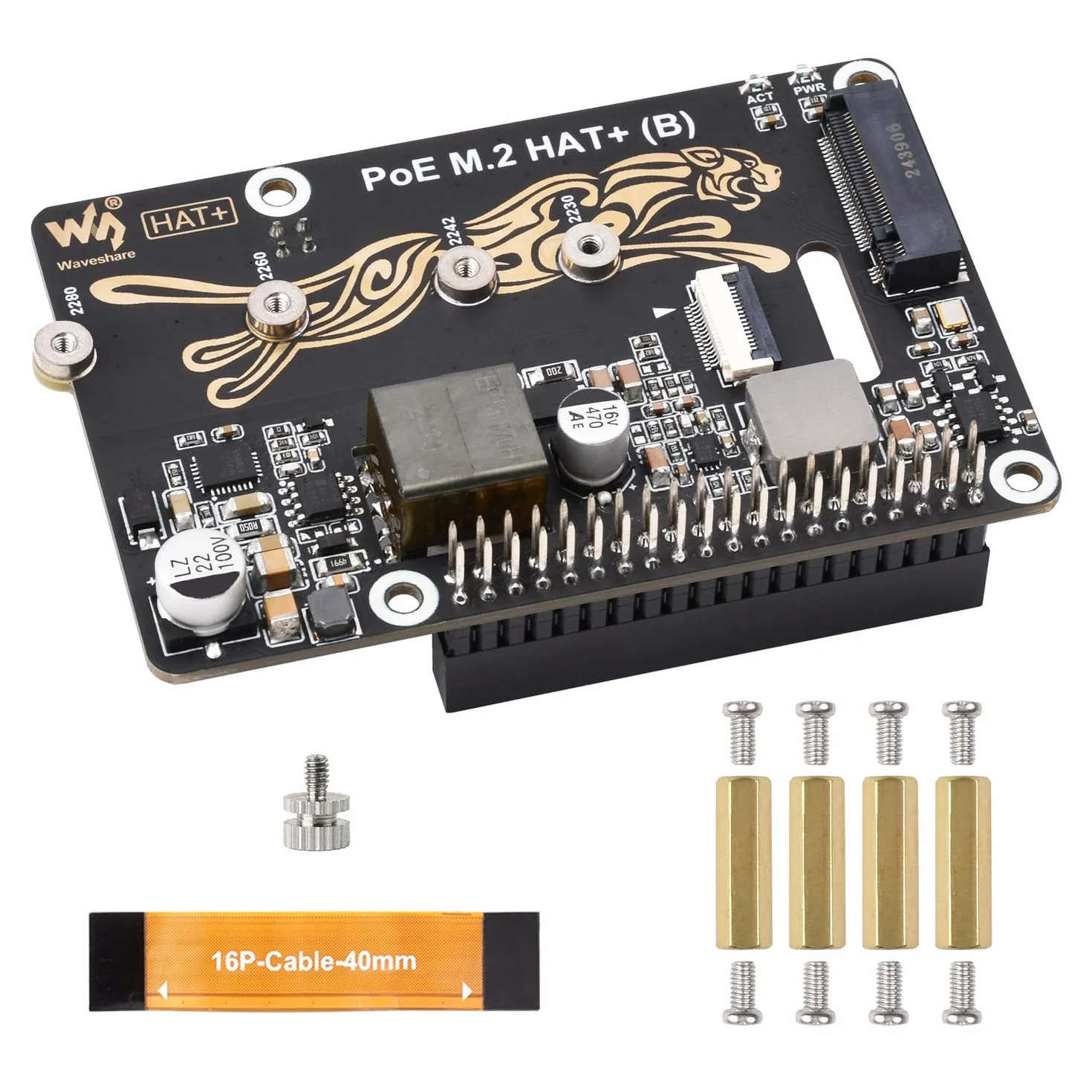

Waveshare PCIe to M.2 Adapter with PoE Function HAT+ (B), Compatible with Raspberry Pi 5, Supports POE NVMe Drive Protocol 2230/2242 / 2260/2280 M.2 Solid State Drive, High-Speed Reading/Writing

Zgodne urządzenia: Raspberry Pi 5
Szczególne zastosowania produktu: Raspberry Pi 5, M.2 Solid State Drive
Typ złącza: 16PIN PCIe, 40PIN GPIO
Marka: Waveshare
Liczba portów: 2
Liczba opakowań produktu: 1
Napięcie wejściowe: 5 Napięcie (DC)
Prąd znamionowy: 4,5 Ampery
Liczba jednostek: 1.0 sztuk
Producent: Waveshare

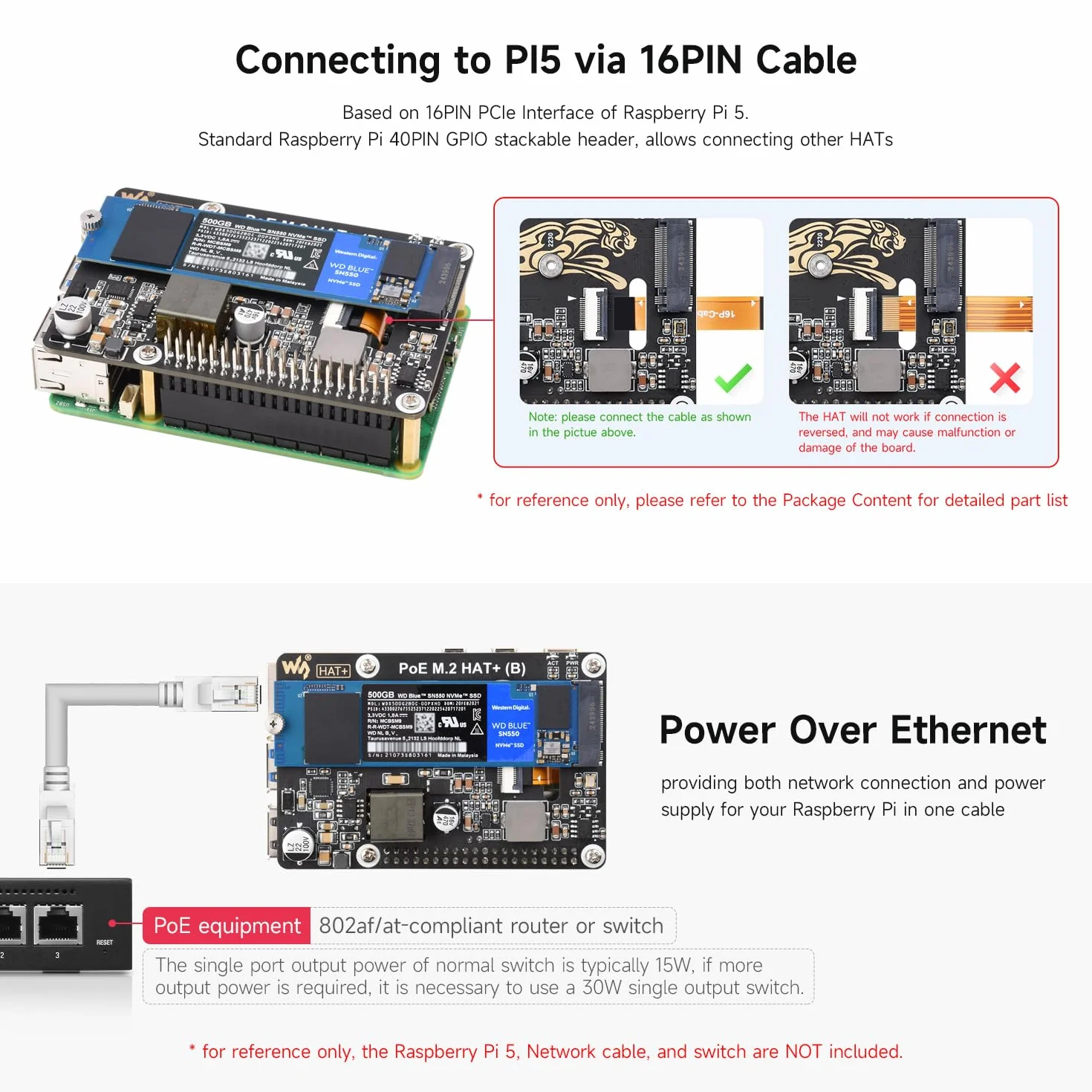

- Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

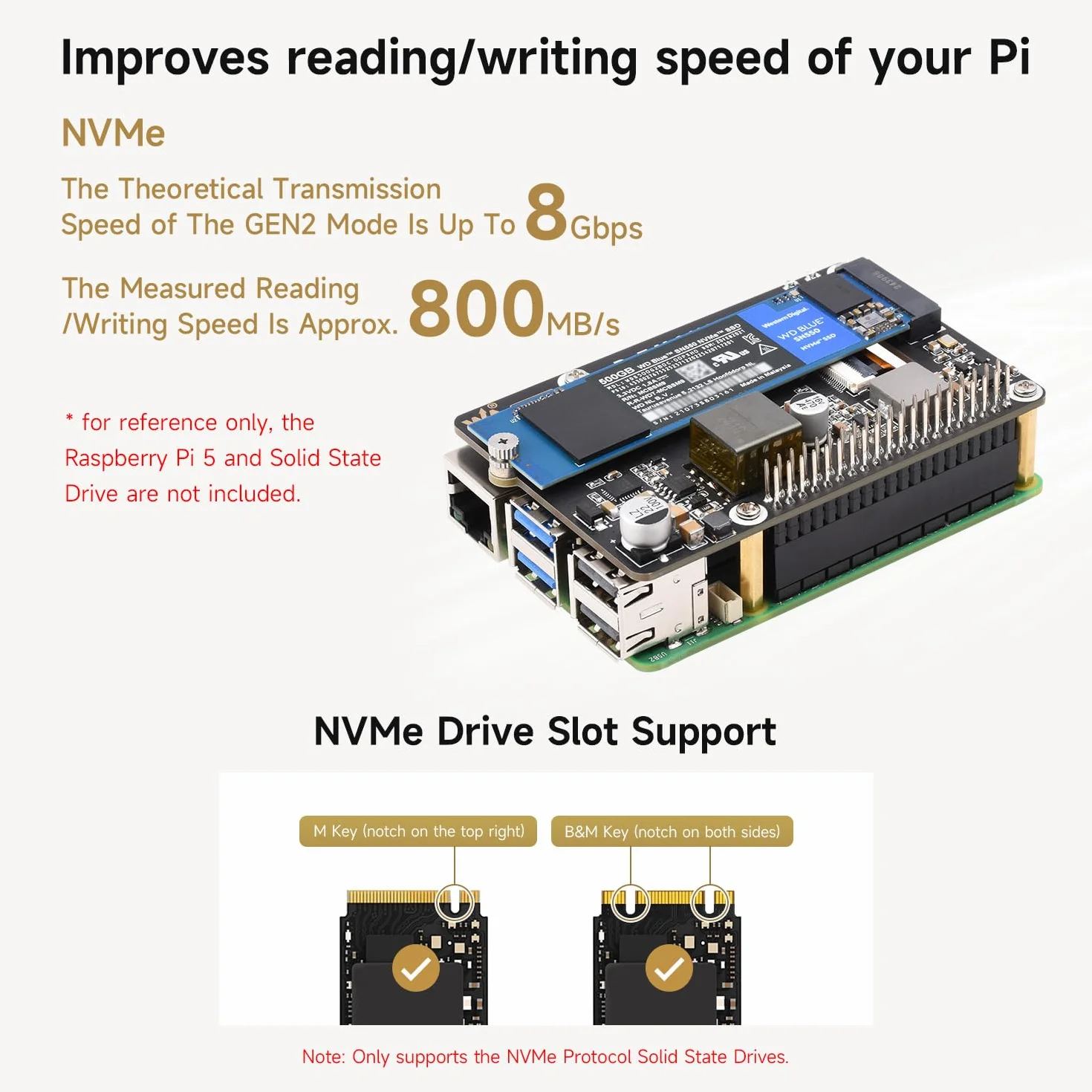

- Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive, Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
- Providing both network connection and power supply for your Raspberry Pi in one cable

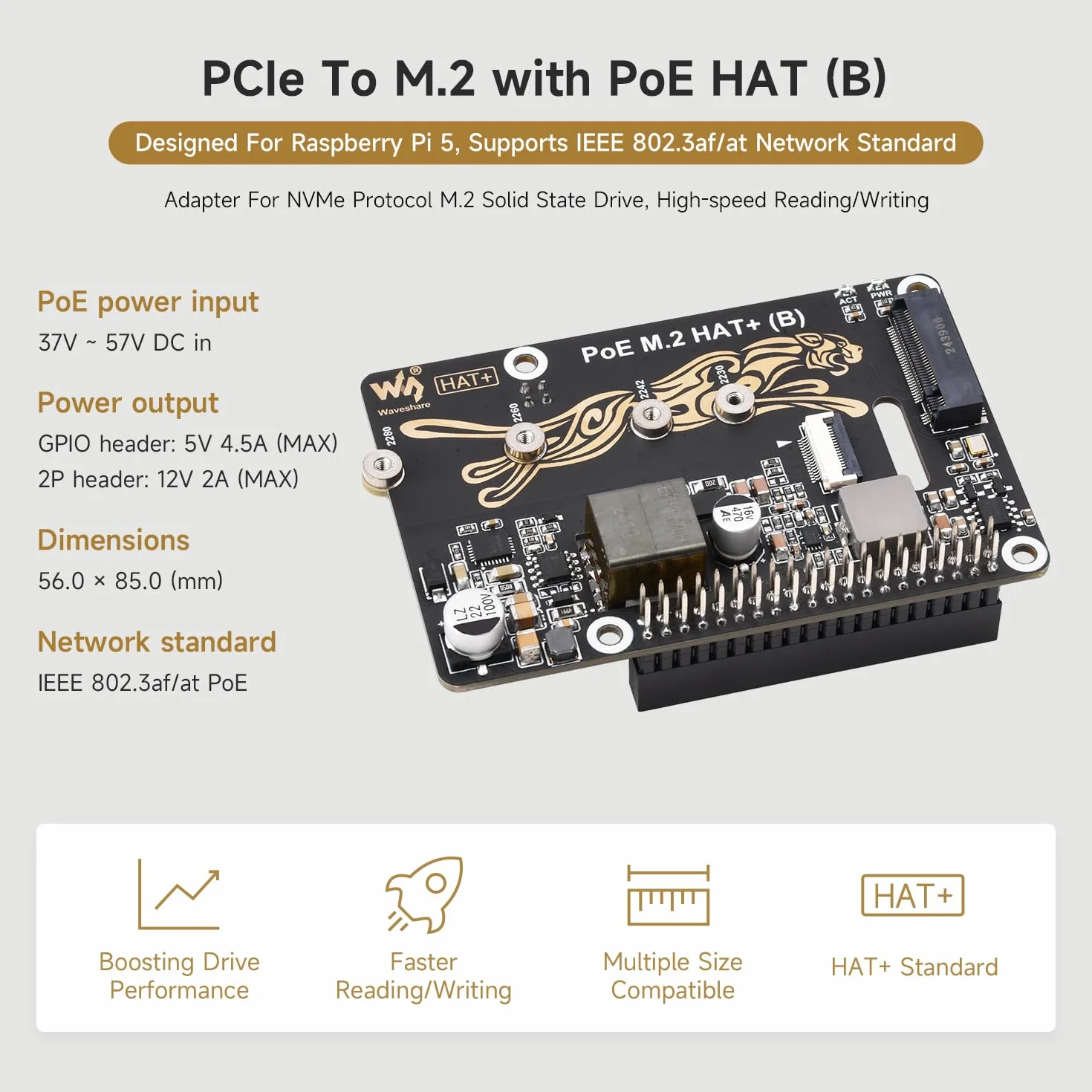

- 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to Raspberry Pi
