Waveshare Industrial Serial Server RS485 To RJ45 Ethernet TCP/IP To Serial Rail-Mount Support with PoE Ethernet Port + Electrical Isolation

Marka: Waveshare
Zgodne urządzenia: Komputery przemysłowe, serwery
Technologia pamięci RAM: DDR4
Platforma: Niespecyficzne dla maszyn
Nazwa modelu: RS5922
Pojemność pamięci masowej: 64 GB
Typ głównego złącza zasilania: 24 pin
Interfejs karty graficznej: PCI Express
Liczba portów: 1
Wymiary produktu: 8,7dł. x 3,6szer. x 5,9wys. cm

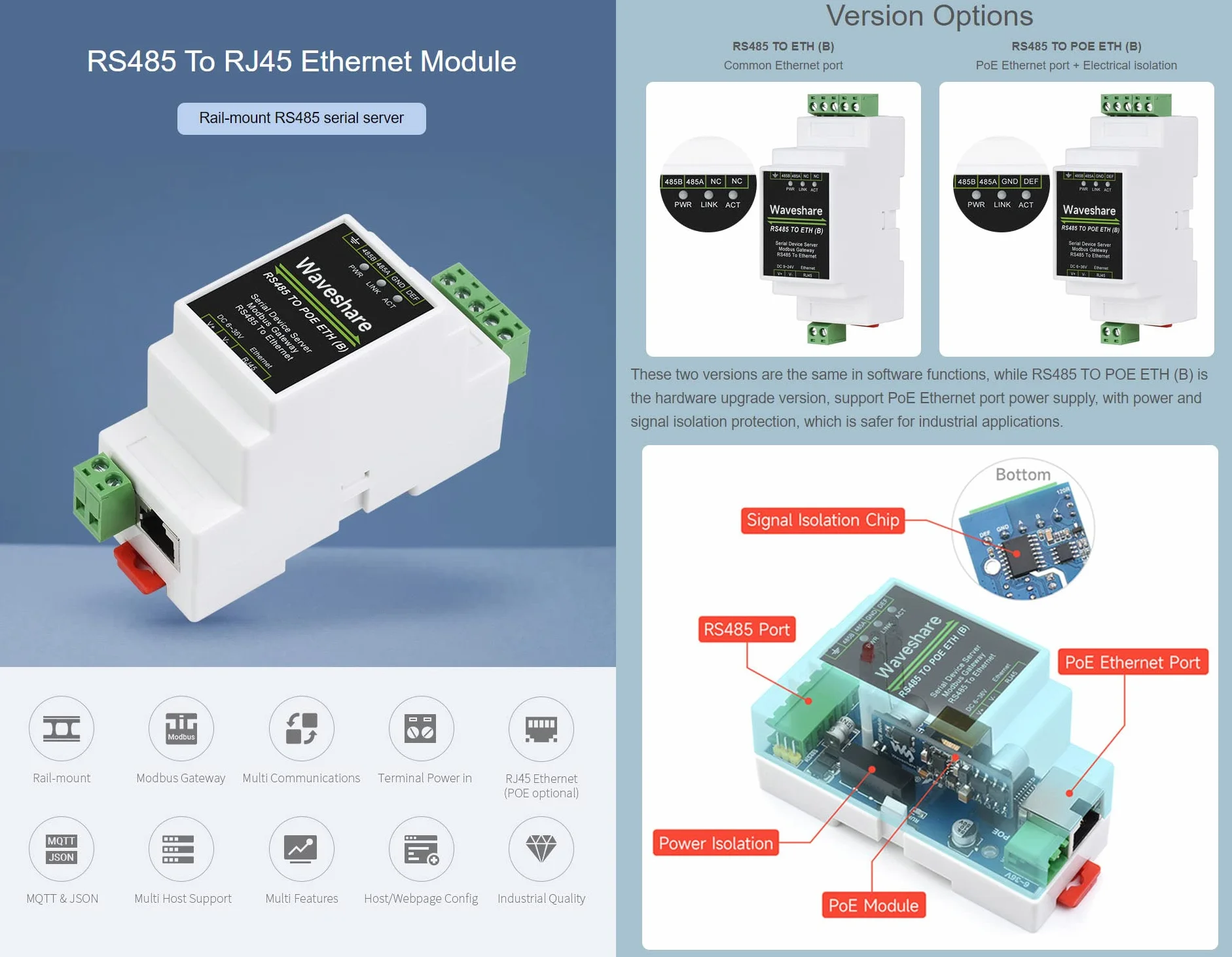

- This is the hardware upgrade version, support PoE Ethernet port power supply, with power and signal isolation protection, which is safer for industrial applications.

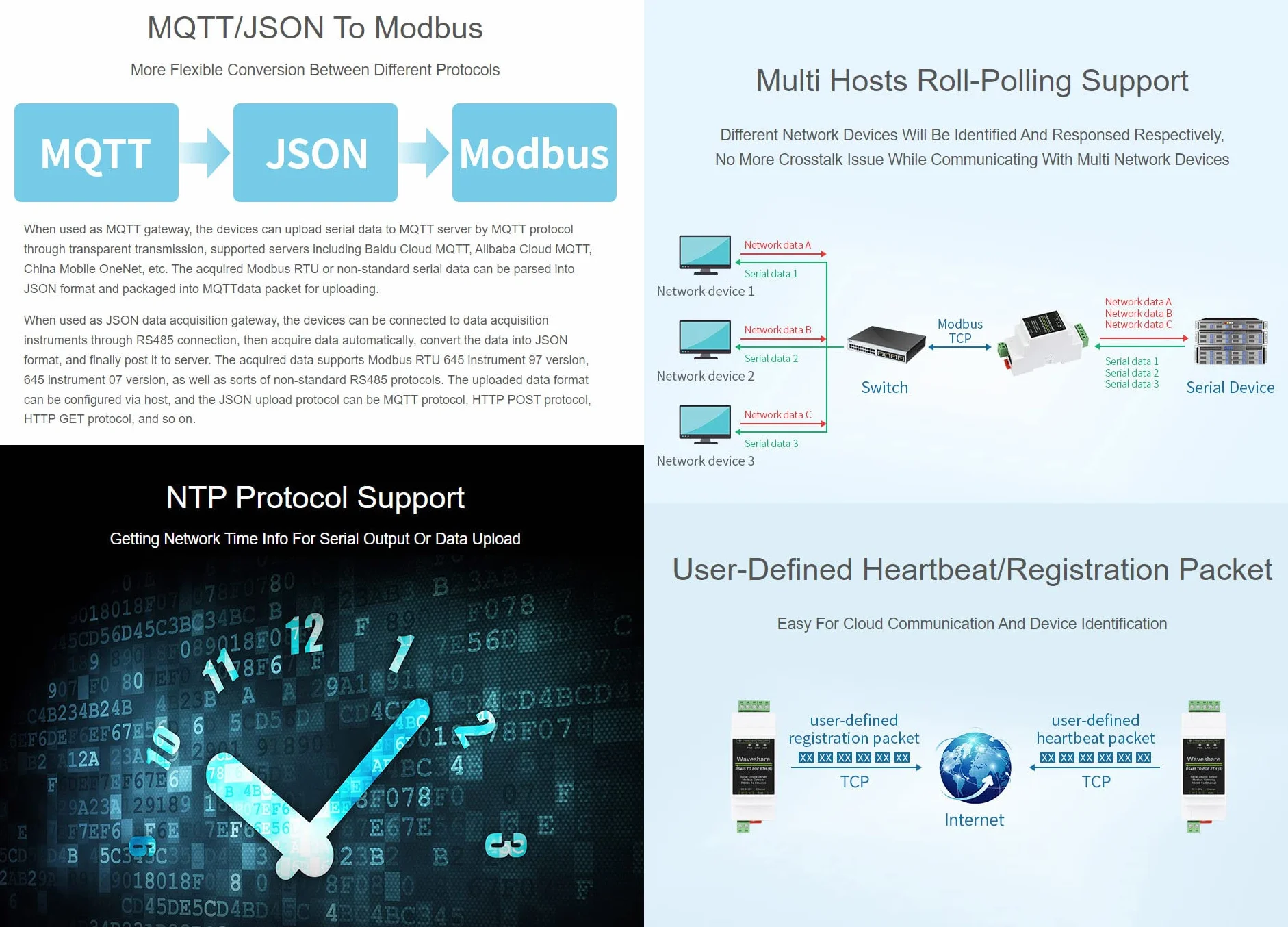

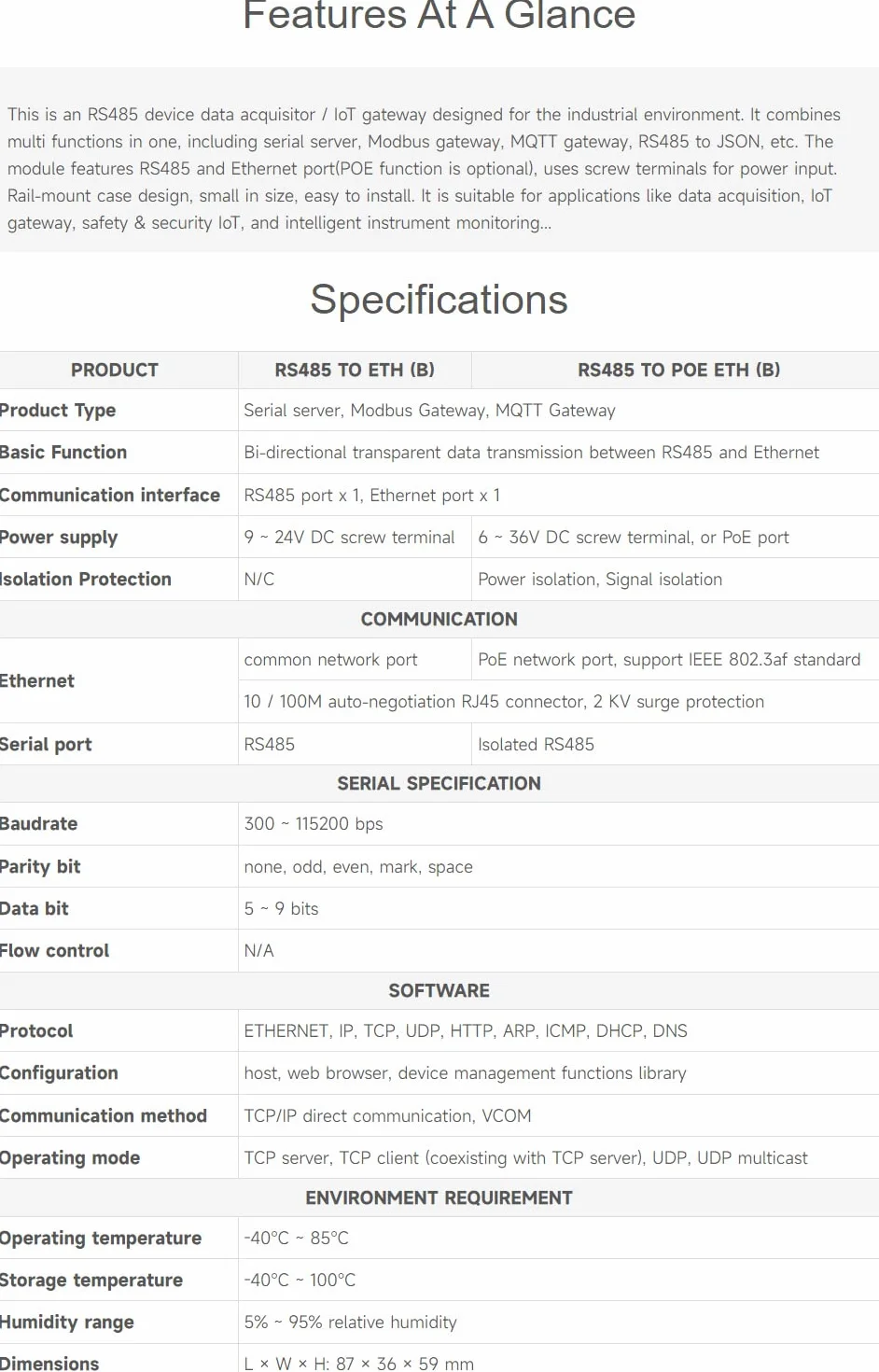

- This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc.
- The module features RS485 and Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount flame-retardant case design, small in size, easy to install.
- It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

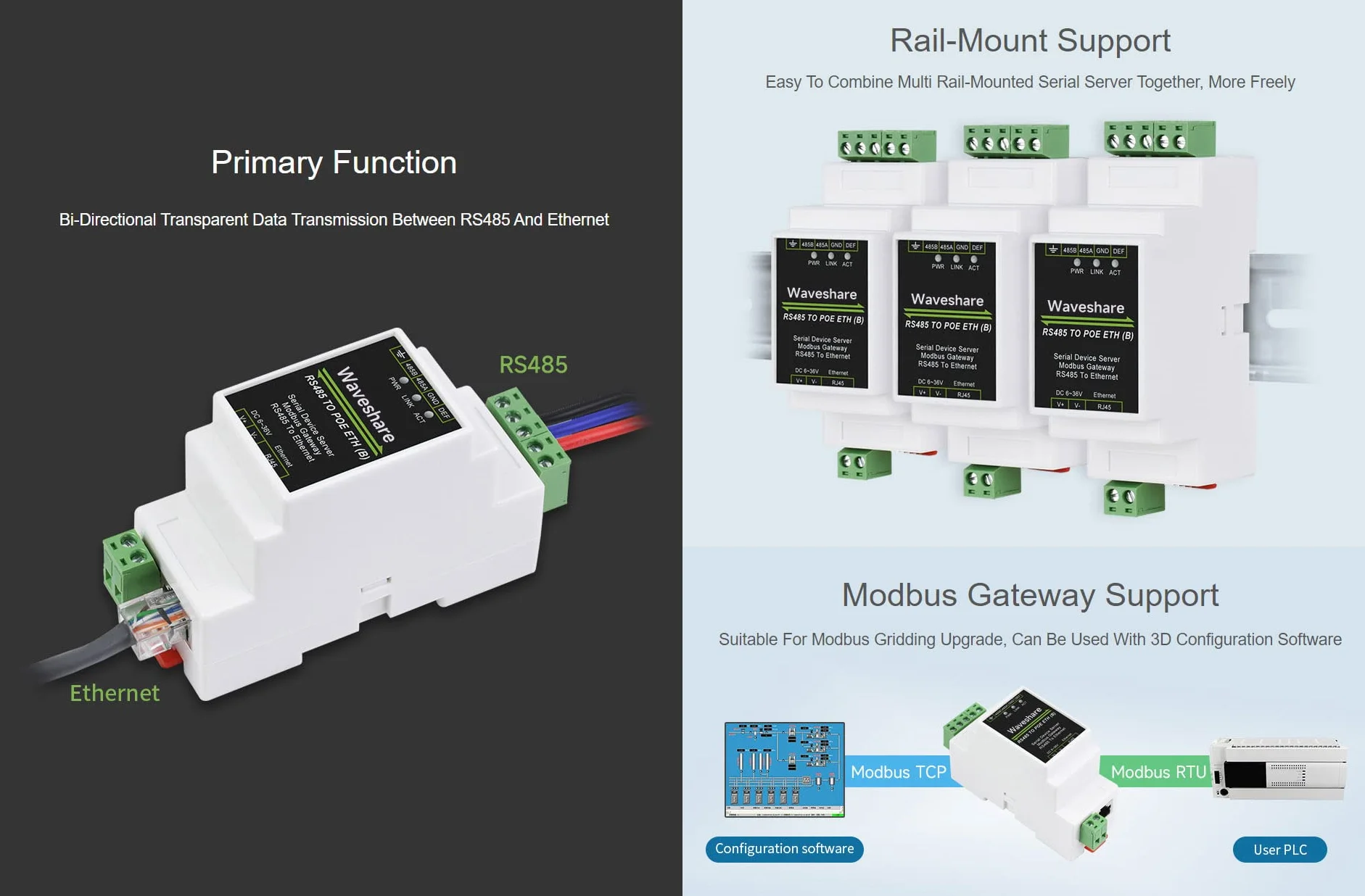

- Bi-Directional Transparent Data Transmission Between RS485 And Ethernet
