Waveshare ESP32-S3 2inch Capacitive Touch Display Development Board, 240x320, IPS, 32-Bit LX7 2-Core Processor, Up To 240MHz Frequency, Support WiFi BT, Support OV5640 5MP Camera Module(NOT Included)

Marka: Waveshare
Nazwa modelu: ESP32-S3-Touch-LCD-2
Rozmiar zainstalowanej pamięci RAM: 8 MB
Pojemność pamięci masowej: 16 MB
Szybkość CPU: 240 MHz
Technologia łączności: Wi-Fi, Bluetooth, USB, SPI, I2C

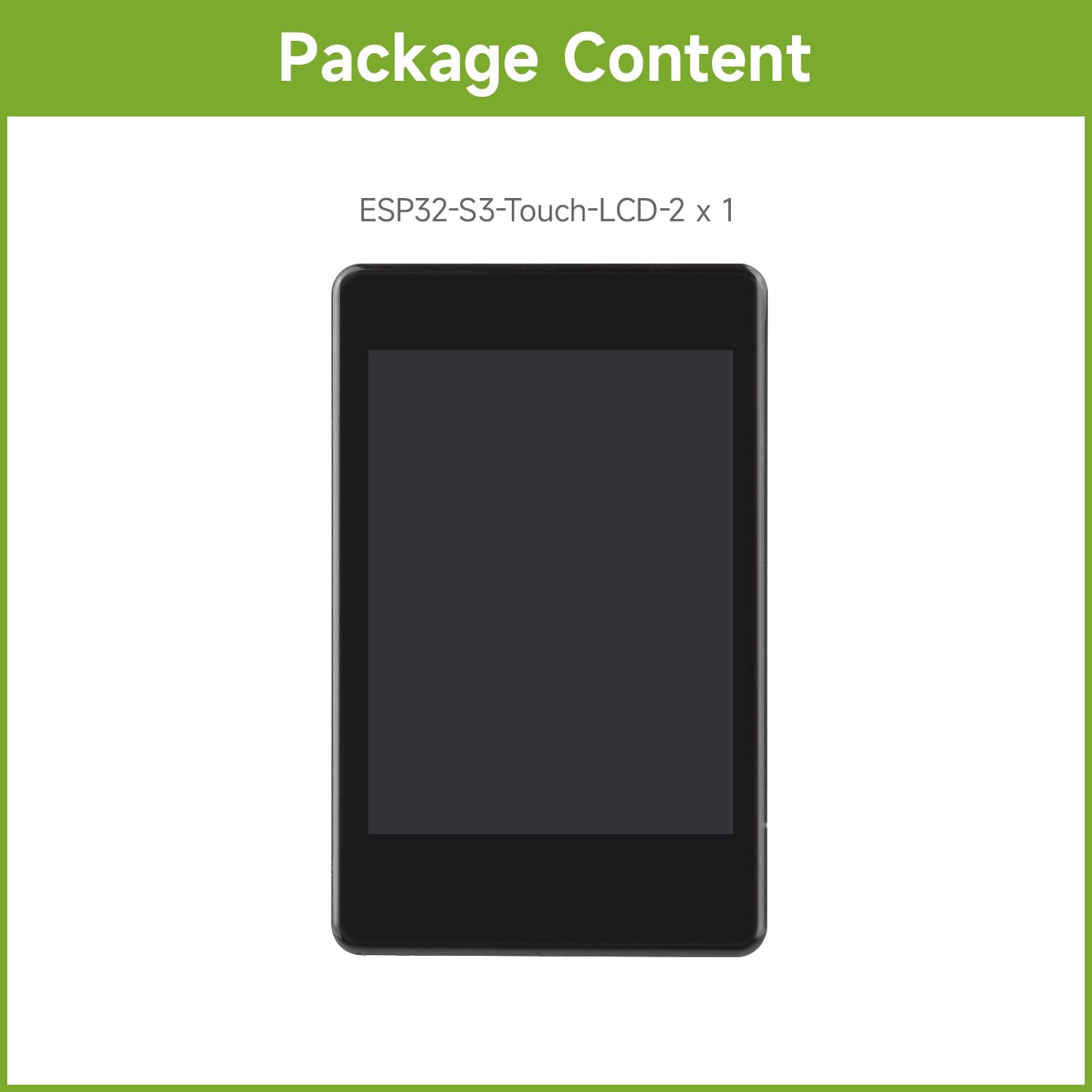

Dołączone komponenty: ESP32-S3-Touch-LCD-2
System operacyjny: Linux
Zgodne urządzenia: OV2640, OV5640
Technologia pamięci RAM: PSRAM

- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna
- Built in 512KB of S-RAM and 384KB ROM, with onboard 8MB PS-RAM and an external 16MB Flash memory. Type-C connector, improving device compatibility, easier to use. Onboard 2inch capacitive touch display for clear color picture display, 240 x 320 resolution, 262K color
- Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).Onboard 3.7V MX1.25 Li batt recharge/discharge header. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard TF card slot for external TF card storage of pictures or files. Adapting 22 x GPIO pins for flexible configuration of pin function. Onboard camera interface, compatible with mainstream cameras such as OV2640(NOT Included) and OV5640(NOT Included) for image and video acquisition
