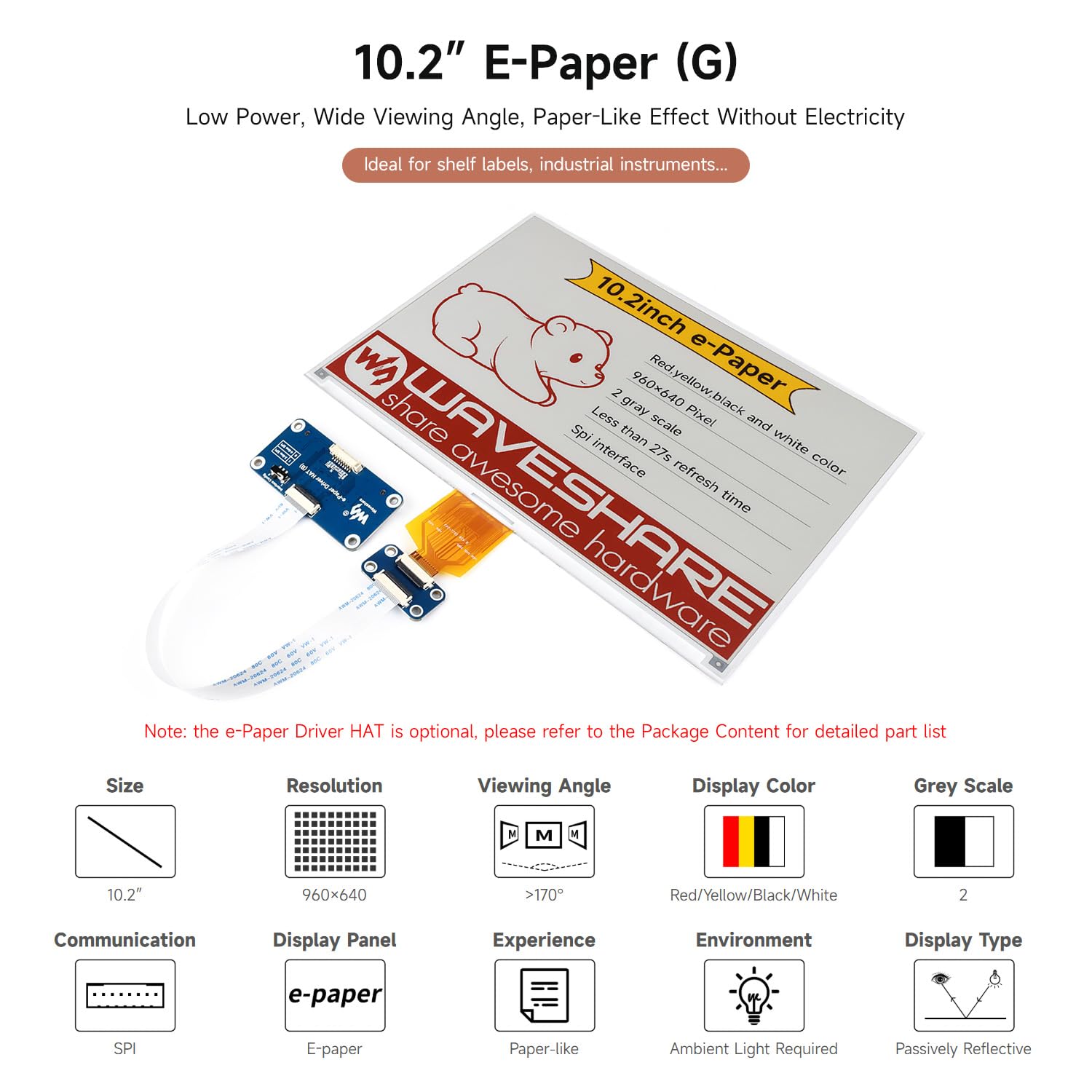

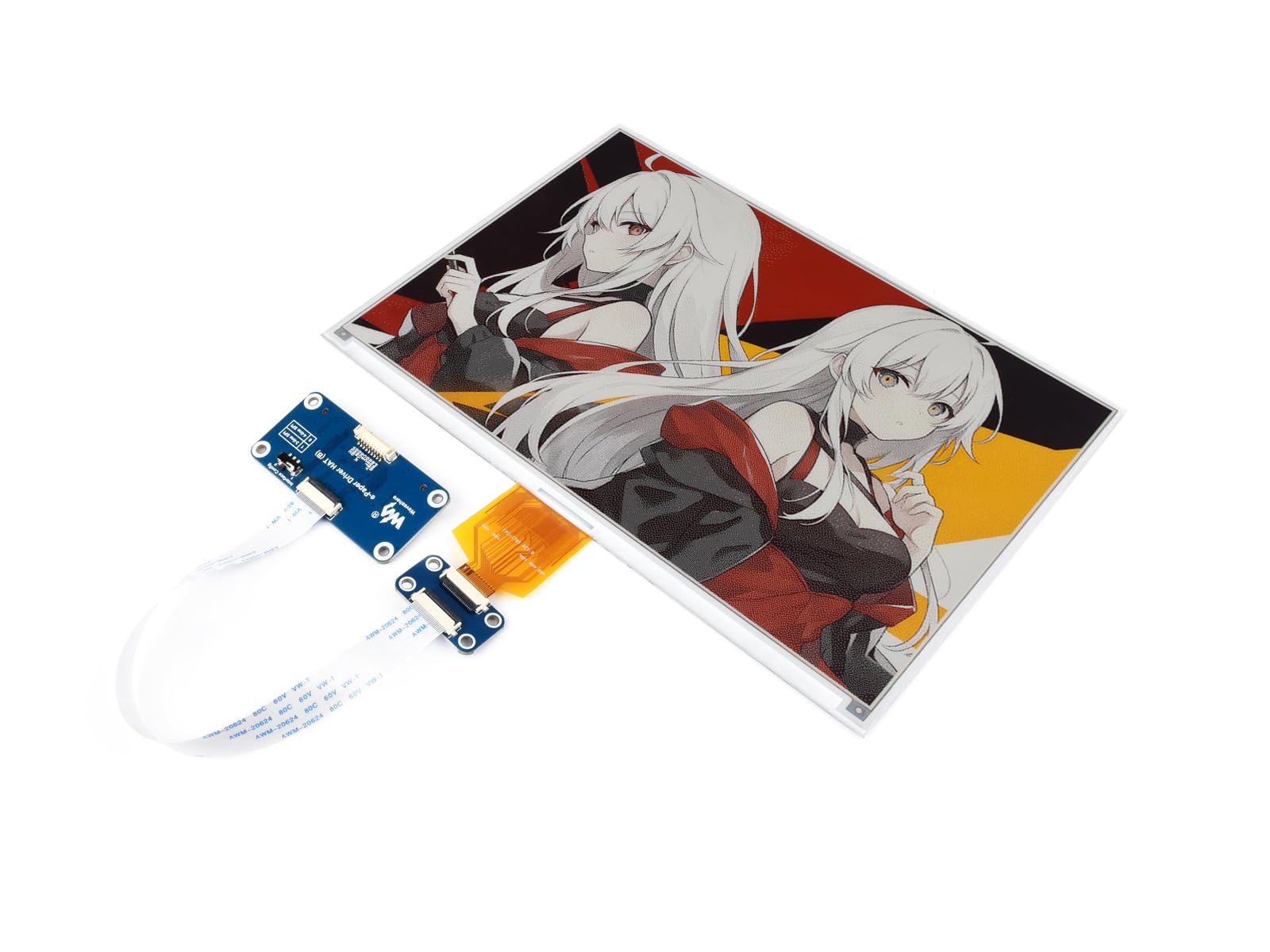

Waveshare 10.2inch e-Paper Display (G), e-Ink Display, 960x640, Red/Yellow/Black/White, SPI Interface, with e-Paper Driver HAT, Compatible with Raspberry Pi 5/4B/3B/CM3/3+/4

Marka: Waveshare
Zgodne urządzenia: Raspberry Pi 5/4B/3B/CM3/3+/4, Jetson Nano, Arduino, STM32
Technologia pamięci RAM: LPDDR2
Kompatybilne procesory: Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3B, Raspberry Pi CM3, Raspberry Pi 3+, Raspberry Pi 4
Platforma: Linux
Nazwa modelu: G
Model CPU: Core i7
Typ głównego złącza zasilania: 40-pinowe
Dostępne sloty pamięci: 2
Liczba portów: 1

- No Backlight, Persistent Display: The display doesn't require a backlight and maintains the last content shown for a long time, even when powered down, making it ideal for low-maintenance applications.
- Ultra Low Power Consumption: The display is energy-efficient, consuming power only when refreshing the content, which makes it perfect for batt-powered projects or those with limited power availability.
- Comprehensive Development Resources: The display includes online resources and a manual, featuring an e-Paper Driver HAT circuit diagram and example code for various platforms like Raspberry Pi, Jetson Nano, and STM32, enabling quick setup and development.

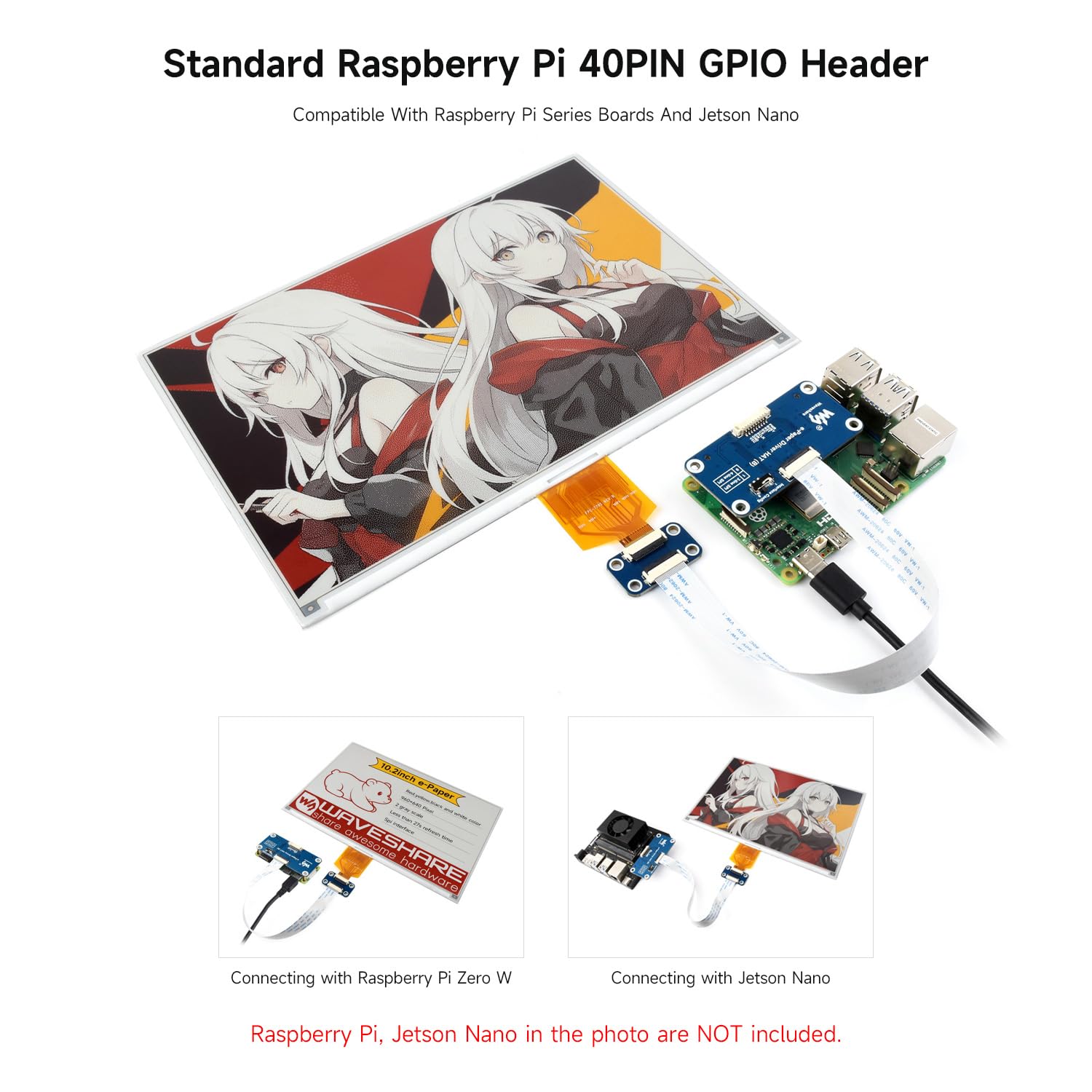

- Flexible Connectivity with e-Paper Driver HAT: The optional e-Paper Driver HAT features a standard 40PIN GPIO extension header, making it compatible with Raspberry Pi series boards and Jetson Nano, providing versatile connectivity options.

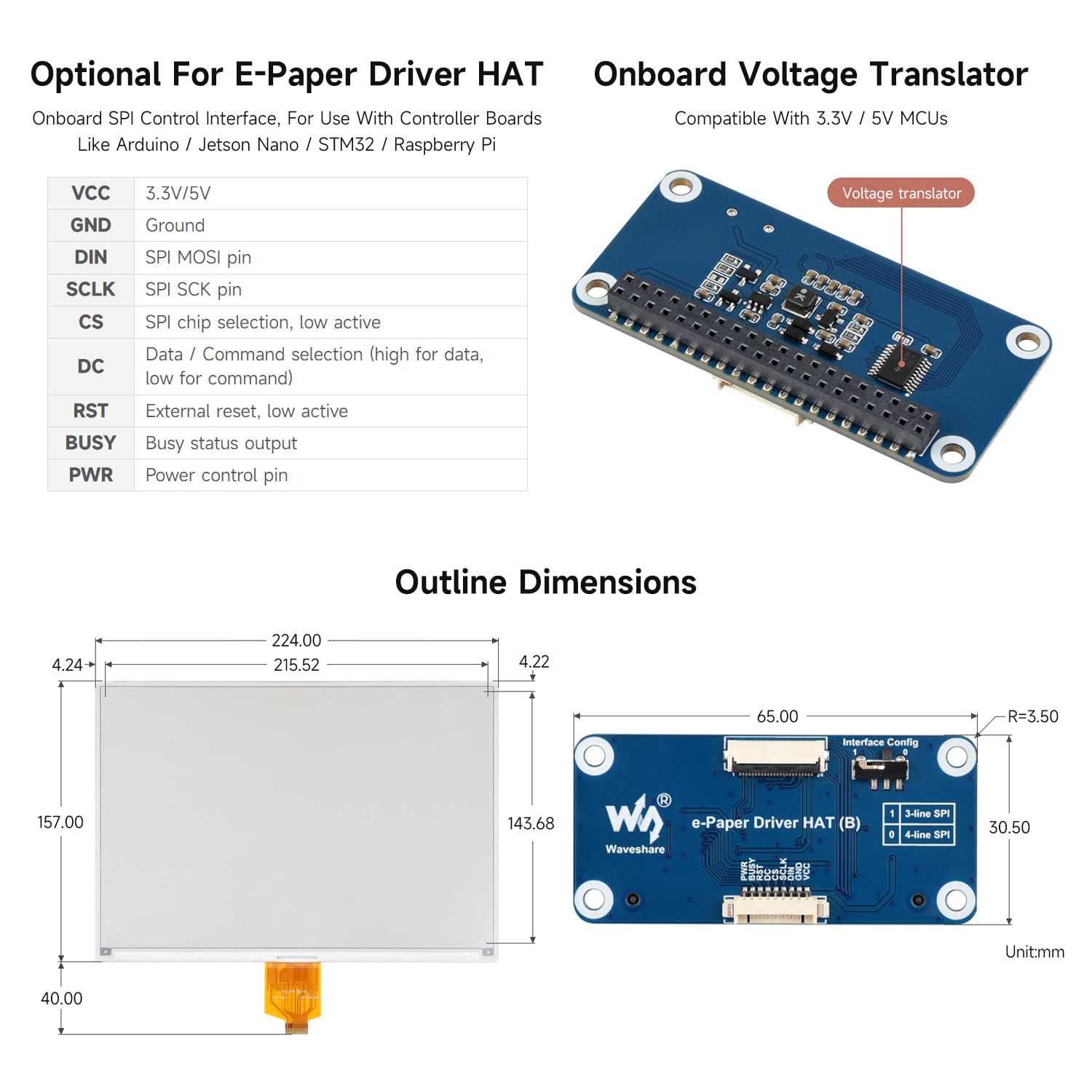

- SPI Interface and Voltage Compatibility: The e-Paper Driver HAT utilizes an SPI interface for connecting with controller boards like Raspberry Pi, Jetson Nano, and STM32, and includes an onboard voltage translator to ensure compatibility with both 3.3V and 5V MCUs.
